General Description (Click here to check or download the PDF File)
The System 2 family was designed to cool mid-size enclosures. Whether a wooden cabinet holding shelves or a rack, a video projector in a box, or a small closet, there’s a member of the System 2 family that will solve the overheating problem.

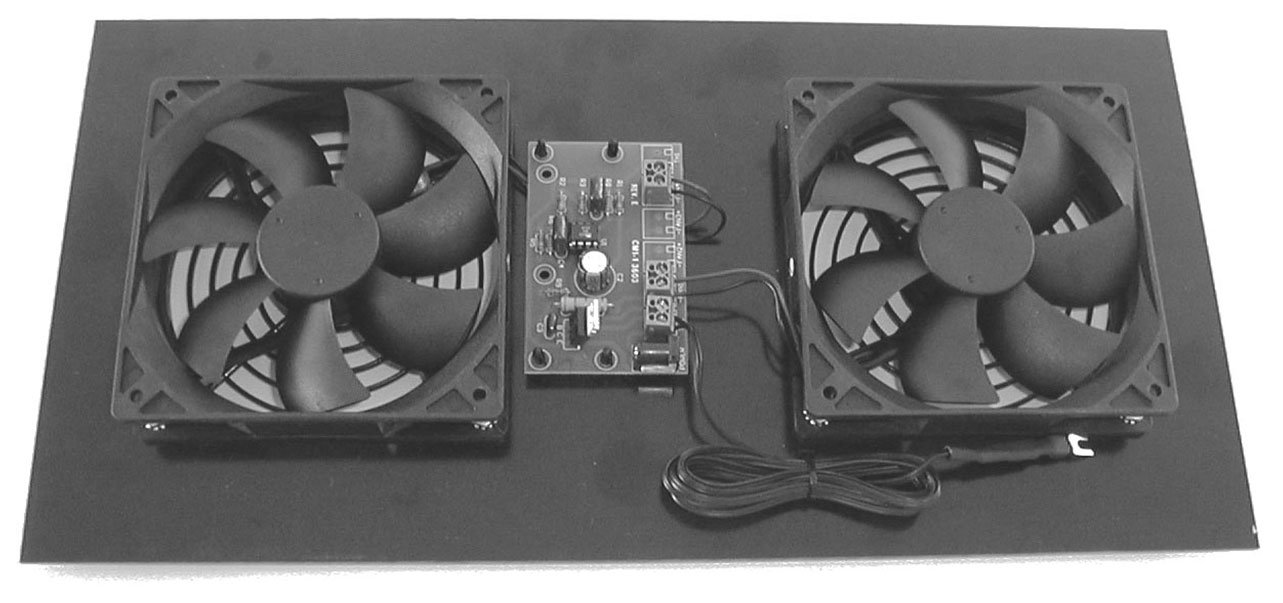

The original System 2 is an all-in-one; the fans and controller are mounted on a gasketed panel. Just cut a 14″ x 5.5″ (approximate – do not cut before receiving unit) hole in the back panel of the enclosure and provide an air input opening. The two thermal sensors are clipped to whatever generates the most heat in the enclosure (video projector, hi-def cable box, or surround-sound amplifier). The sensors adjust the speed of the two exhaust fans automatically and turn them off when the sensed equipment approaches room temperature. Maximum allowed fan speed is low; noise level approaches inaudibility.
When a more flexible mounting technique is needed, the System 2 Kit solves the problem. Available with 2 fans (the Kit) or with 4 fans (the 2+2 Kit), the kits give the installer the ability to mount the fans in the best possible location in a particular installation. In the side of a cabinet? Above a closet door? Through a wall (interior, of course)? Follow the guidelines in our white paper “Cooling the Mid-Sized Enclosure” (call or e-mail us for a copy) and let the Kits simplify your cooling problems.

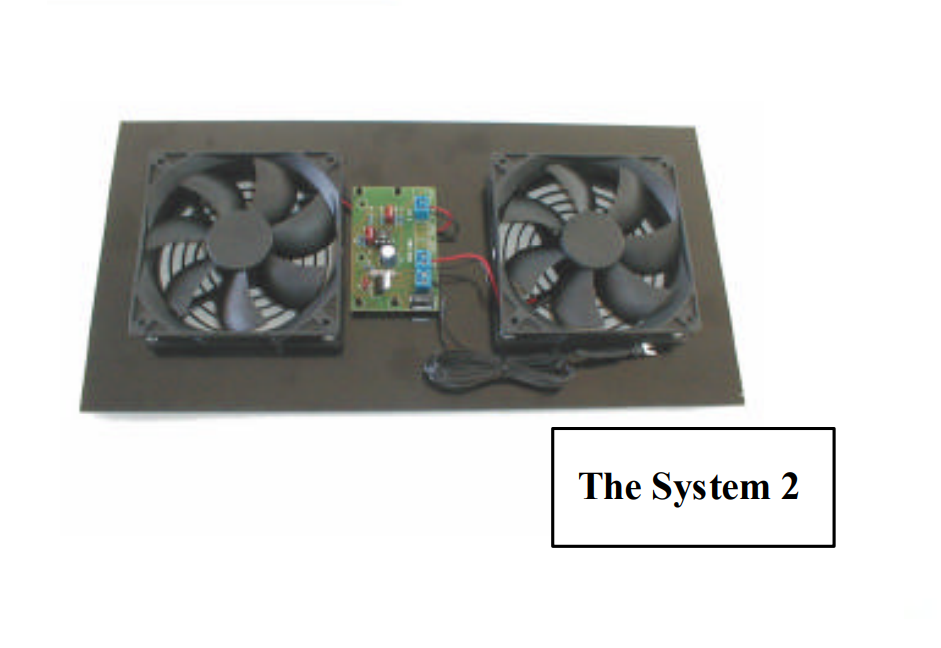

The System 2
The System 2 Kit
Features
- Extremely quiet
- Completely automatic operation
- Covers a wide range of applications; solves a wide range of overheating problems
- Very low power consumption
- Rated for continuous operation
Specifications
| Parameter | System 2 | System 2 Kit | System 2+2 Kit |
|---|---|---|---|
| Fans | 2 / 120mm | 2 / 120mm | 4 / 120mm |
| Air flow (free air) | 10–40 CFM | 10–40 CFM | 20–80 CFM |
| Noise level (full speed) | 24 dBA | 24 dBA | 27 dBA |
| Thermal sensors | 2 | 2 | 2 |
| Mode of operation | Exhaust | Intake, exhaust, both | Intake, exhaust, both |
| Power consumption* | 8.5 watts | 8.5 watts | 7 watts |
| Dimensions | 15.75″ x 7.75″ | N/A | N/A |
| 40 x 20 (cm) | |||
| Weight | 1.3 / .6 lbs/kg | 1.3 / .6 lbs/kg | 1.5 / .7 lbs/kg |
| Part number | 00-200-02 | 00-201-02 | 00-202-02 |
*4 watts stand-by
Kit Contents
| Item | System 2 Kit | System 2+2 Kit |
|---|---|---|
| Fans | 2 | 4 |
| Fan guard | 2 | 4 |
| Control unit | 1 | 1 |
| Thermal sensor | 2 | 2 |
| Power supply | 1 | 1 |
